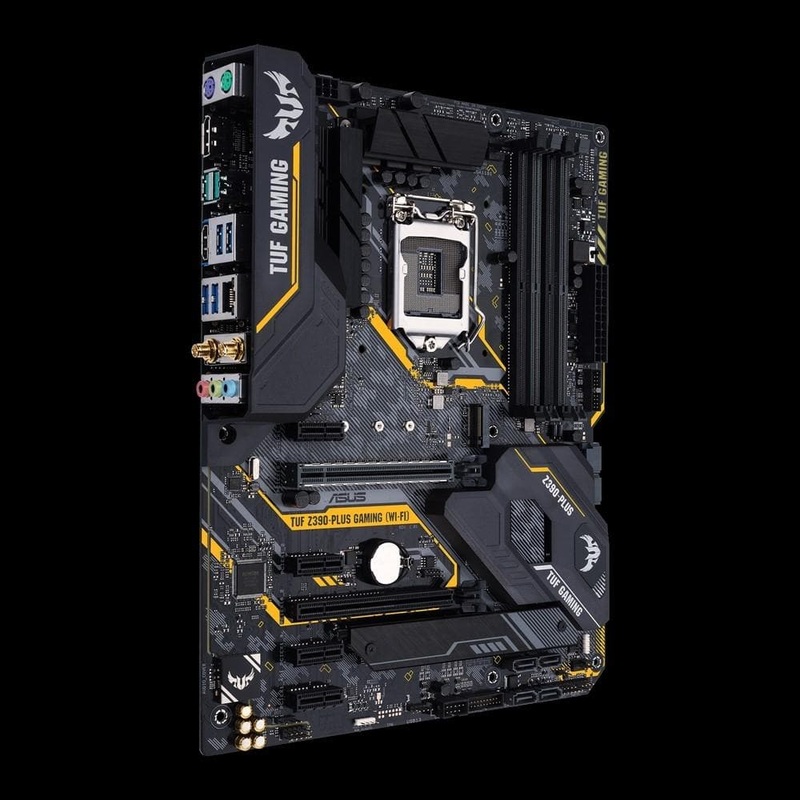

Intel Z390 ATX gaming motherboard with OptiMem II, Aura Sync RGB LED lighting, DDR4 4266+ MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.

• CPUIntel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
  Supports Intel 14 nm CPU
  Supports Intel Turbo Boost Technology 2.0
  * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• ChipsetIntel Z390
• Memory4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• GraphicIntegrated Graphics Processor- Intel UHD Graphics support
  Multi-VGA output support : HDMI/DisplayPort ports
  – Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
  – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
  DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
• Multi-GPU SupportSupports AMD CrossFireX Technology
• Expansion Slots1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
  4 x PCIe 3.0/2.0 x1 *1
  *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
• StorageIntel Z390 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
  6 x SATA 6Gb/s port(s), gray, *3
  Support Raid 0, 1, 5, 10
  Intel Rapid Storage Technology supports
  Intel Optane Memory Ready
  Intel CPU with Intel Rapid Storage Technology support (RAID 0 & RAID 1)
  PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card*4
• LANIntel I219V, featuring Turbo LAN
  TUF LANGuard
  Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
• Wireless Data NetworkIntel Wireless-AC 9560
  Wi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Supports 2×2 MU-MIMO
  Supports channel bandwidth: HT20/HT40/HT80/HT160
• BluetoothBluetooth 5.0
• AudioRealtek ALC S1200A 8-Channel High Definition Audio CODEC
  – Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  – Exclusive DTS Custom for GAMING Headsets.
  – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB PortsIntel Z390 Chipset :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
  Intel Z390 Chipset :
  8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board)
  Intel Z390 Chipset :
  3 x USB 2.0/1.1 port(s) (3 at mid-board)
• Special FeaturesFan Xpert4
  – Advanced fan and liquid controls for ultimate cooling and quietness
  ASUS TUF PROTECTION
  – ASUS DIGI+ VRM: Precision control for stable power
  – ASUS SafeSlot: Protect your graphics card Investment
  – ASUS ESD Guard: Enhanced ESD protection
  – ASUS Overvoltage Protection: World-class circuit-protecting power design
  – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  ASUS Optimem II
  – Optimem (Improved DDR4 stability)
  ASUS EPU :
  – EPU
  TUF ENGINE! Power Design :
  – TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
  AURA :
  – Aura Lighting Control
  – Aura RGB Strip Headers
  ASUS Exclusive Features :
  – AI Suite 3
  – Ai Charger
  – Turbo LAN
  – PC Cleaner
  – File Transfer
  – ASUS C.P.R.(CPU Parameter Recall)
  ASUS Quiet Thermal Solution :
  – Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
  – ASUS Fan Xpert 4
  ASUS EZ DIY :
  – ASUS O.C. Tuner
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  – ASUS Q-Slot
  – ASUS Q-DIMM
  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  MemOK! II
  – Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
  Q-Installer
  – Auto download driver and software. Friendly for first PC builder.
• Back I/O Ports1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 2 Type-A,
  4 x USB 3.2 Gen 1 Type-A
  2 x Wi-Fi antenna port(s)
  3 x 8-channel Audio I/O
• Internal I/O Ports2 x Aura RGB Strip Header(s)
  2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (4 -pin)
  1 x CPU OPT Fan connector(s) (4 -pin)
  2 x Chassis Fan connector(s) (4 -pin)
  1 x AIO_PUMP connector ()
  1 x S/PDIF out header(s)
  1 x 8-pin EATX 12 V Power connector
  1 x 24-pin EATX Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x MemOK! II switch(es)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
• AccessoriesUser’s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  1 x TUF Gaming Sticker
  1 x TUF Certification card(s)
  1 x SCD (by region)
  1 x Wi-Fi moving antenna
• BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Support DiscDrivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)
• Operating SystemWindows 10 64-bit
• Form FactorATX Form Factor
  12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Management SolutionWOL by PME, PXE
• Note*1. The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
  *2. When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
  *3. When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
  *4. Supports CPU RAID with Intel PCIe NVME SSDs. RAID 0 and 1 are supported via a Hyper M.2 X16 series card or on RAID sets created between the onboard M.2 socket and a Hyper M.2 X16 series card.
