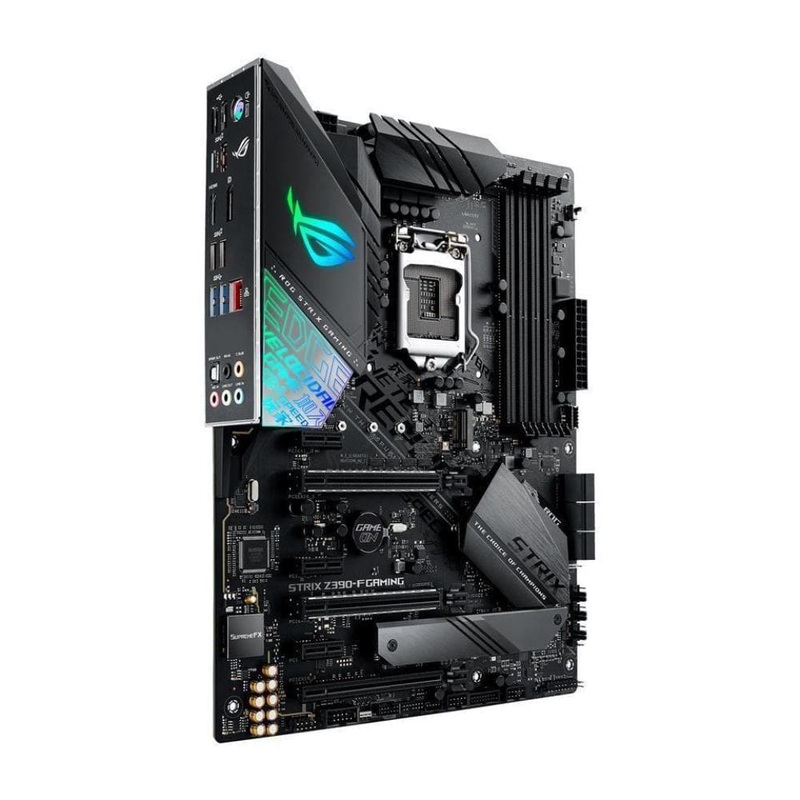

Intel Z390 LGA 1151 ATX gaming motherboard with Aura Sync, DDR4 4266 MHz+, dual M.2, SATA 6Gbps, HDMI and USB 3.1 Gen 2

• CPUIntel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
  Supports Intel 14 nm CPU
  Supports Intel Turbo Boost Technology 2.0
  * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• ChipsetIntel Z390
• Memory4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• GraphicIntegrated Graphics Processor- Intel HD Graphics support
  Multi-VGA output support : HDMI/DisplayPort ports
  – Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
  – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Multi-GPU SupportSupports NVIDIA 2-Way SLI Technology
  Supports AMD 3-Way CrossFireX Technology
• Expansion Slots2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  3 x PCIe 3.0/2.0 x1
• StorageIntel Z390 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel Optane Memory Ready
• LANIntel I219V
  Anti-surge LANGuard
  ROG GameFirst Technology
• AudioROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  – Dual OP Amplifiers
  – Impedance sense for front and rear headphone outputs
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  – SupremeFX Shielding Technology
  – Supports up to 32-Bit/192kHz playback *2
  Audio Feature :
  – SupremeFX Shielding Technology
  – Optical S/PDIF out port(s) at back panel
  – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  – Sonic Radar III
  – Sonic Studio III + Sonic Studio Link
• USB PortsIntel Z390 Chipset :
  1 x USB3.1 Gen 1 front panel connector port(s)
  Intel Z390 Chipset :
  4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM)
  Intel Z390 Chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel Z390 Chipset :
  6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
• ROG Exclusive FeaturesROG Exclusive Software
  – RAMCache III
  – CPU-Z
  – GameFirst V
  – Sonic Studio III + Sonic Studio Link
  – Sonic Radar III
• Special FeaturesOC Design – ASUS PRO Clock Technology
  – Full BCLK range for extreme overclocking performance
  5-Way Optimization by Dual Intelligent Processors 5
  – 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
  AI Overclocking
  ASUS Optimem II
  – Optimem (Improved DDR4 stability)
  – Improved DDR4 Stability
  AURA :
  – Aura Lighting Control
  – Aura RGB Strip Headers
  – Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  – Aura Addressable Strip Header(s)
  ASUS Exclusive Features :
  – MemOK! II
  – AI Suite 3
  – Ai Charger
  – Armoury Crate
  – Pre-mounted I/O Shield
  – ASUS NODE: hardware control interface
  ASUS EZ DIY :
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  ASUS Q-Design :
  – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  – ASUS Q-Slot
  – ASUS Q-DIMM
  Gaming Aesthetics :
  – 3D printing friendly
  – AURA-RGB Lighting
  Digi+VRM
  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  DIY Friendly Design
  – Procool
  – SafeSlot
  – Digi+ VRM
  – DRAM Overcurrent Protection
  – Highly Durable components
  – ESD Guards
• Back I/O Ports1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)
  2 x USB 3.1 Gen 1
  2 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
• Internal I/O Ports1 x Aura Addressable Strip Header(s)
  1 x AAFP connector
  2 x Aura RGB Strip Header(s)
  1 x USB 3.1 Gen 1 front panel TypeC connector
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x M.2_FAN connector
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x W_PUMP+ connector
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x System panel(s) (Chassis intrusion header is inbuilt)
  1 x MemOK! II switch(es)
  1 x Thermal sensor connector(s)
  1 x CPU OV
  1 x Clear CMOS jumper(s)
  1 x Node Connector(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x 14-1 pin TPM connector
  1 x COM port header
  1 x AIO PUMP Header
• AccessoriesUser’s manual
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x MOS fan bracket kit
  1 x CABLE TIE BLACK
  1 x SLI HB BRIDGE(2-WAY-M)
  1 x ROG Strix stickers
  1 x ROG Door Hanger(s)
  1 x Extension Cable for RGB strips (80 cm)
  1 x Extension cable for Addressable LED
  1 x Thermistor cable(s)
• BIOS1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
• ManageabilityWOL , PXE
• Operating SystemWindows 10 64-bit
• Form FactorATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note*1 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
  *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
